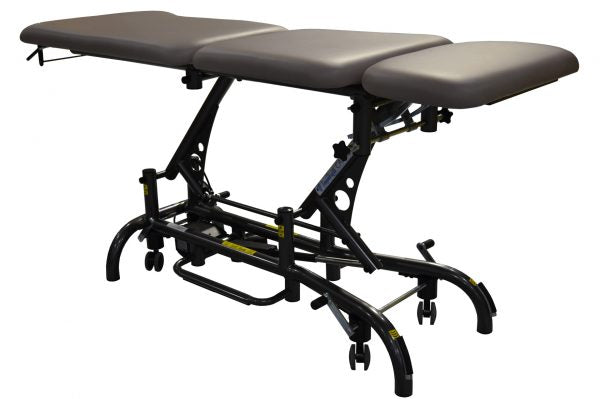

Ultra 100 Treatment Tables
Ultra 100 Treatment Tables
Couldn't load pickup availability
Description:
The Ultra 100 is an ultrasound table created for sonographers for ultrasound procedures. This imaging table is ergonomically designed with your body mechanics in mind to reduce sonographer fatigue and patient repositioning.

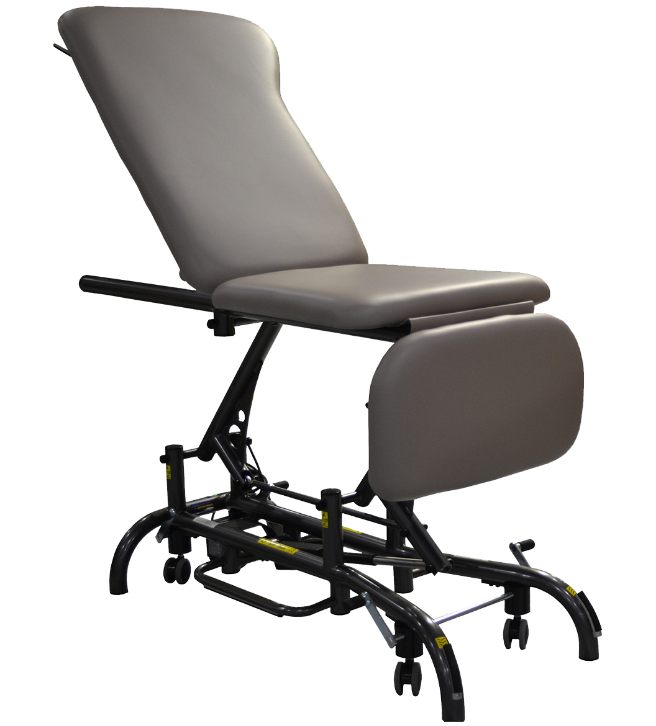

The Ultra 100 easily adjusts to optimize ergonomic positioning for the sonographer while maintaining patient comfort. The backrest raises 90 degrees; the leg section lowers 90 degrees and rises to 85 degrees.
Customizable ultrasound cut-out(s) are available according to your requirements.
Soft Touch Technology
Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your imaging table. Minimal amount of pressure applied by your foot will raise and lower the table with ease.
Standard
| 3 Section Table | |
| Electric Hi-Lo Control | Soft Touch Technology |
| Height Adjustment | 19.5” – 37.25” |
| Customizable Cut-out(s) | |
| Examination Paper Holder | |
| Leg Section Adjustment | Positive locking system |
| Center Section | Fixed |
| Backrest Adjustment | Gas spring |
| Caster System | Dual Lever Retractable (4” casters) |
| Frame Construction | High strength seamless tubular frame |
| Frame Color | Durable powder coat in Gunmetal Grey or White |
| Upholstery Foam | 2” thick |
| Antimicrobial Naugahyde Upholstery | Over 80 upholstery color options |
Specifications
| Lifting Capacity | 500 lbs. |
| Dimensions | 27” x 77” (Customizable width from 25” – 30”) |
| Power Supply | 120 Volt AC 60 Hz. Max. 2.7 Amp. |
| Fire Retardant Upholstery |
Accessories
Heel assists with installation brackets
36″ Assist rail
IV Hook
Battery Powered
Vinyl Pillow Covers
All-Purpose Hi-Lo Stool
